1/3 scale Ka8b

€260.00
Delivered within 4 to 6 business days

1/3 scale Ka8b short kit

Quantity
Last items in stock

The full size one at a glance (wikipedia) - The K 8 was derived from the earlier Ka 6 design as a simple single-place sailplane with dive brakes using construction techniques similar to the Schleicher K 7, simplified for amateur construction from kits. Emphasis was on rugged construction, good climbing ability in thermals and good handling characteristics.

The prototype K 8 made its first flight in November 1957 and over 1,100 were built in three main versions. The original K 8 had a very small canopy. Side windows for improved visibility were introduced in the next version, and the K 8B, by far the most numerous variant, has a larger one-piece blown Plexiglas canopy. The K 8C features a longer nose, larger main wheel located ahead of the center of gravity and deletion of the larger wooden nose skid resulting in a roomier cockpit.

Specs:

Wingspan: 5m

Length: 2.3m

Weight: 7.8Kgs.. Proto - Ideal weight is between 9 and 10.5Kgs, no lighter!

Wing Profile: HQ3.5/12

Functions: Ailerons, Elevator, rudder, airbrakes, tow hook (optional)

Build Logs:

Scale Soaring UK

Ireland

In Germany

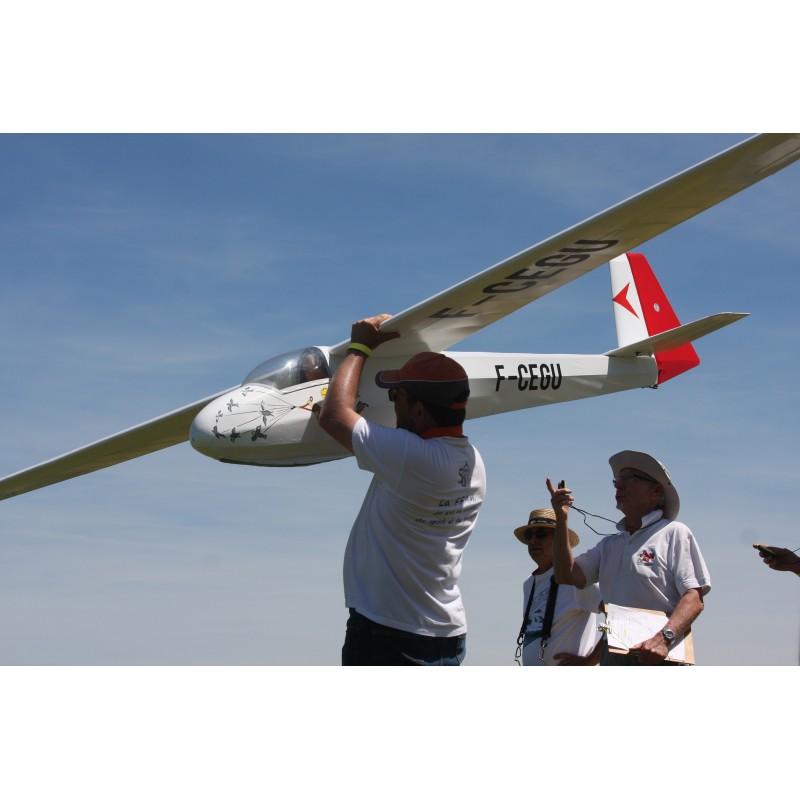

Prototype

Videos:

Ka8b Proto

Ka8b - Mick First flight

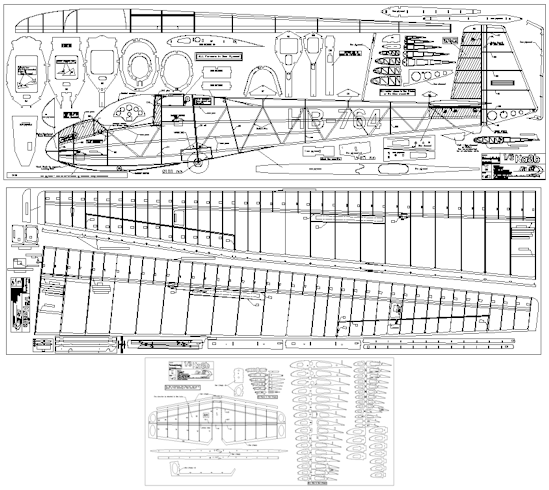

View of the plans:

The short kit includes all the pieces shown on the plan that need to be cut (formers, ribs etc etc), plans in 3 Large sheets, canopy, airbrakes arms (3D printed or epoxy).

You will have to add the strip wood (spars etc), sheeting and the accessories of your choice (hinges etc).

1-3ka8b
